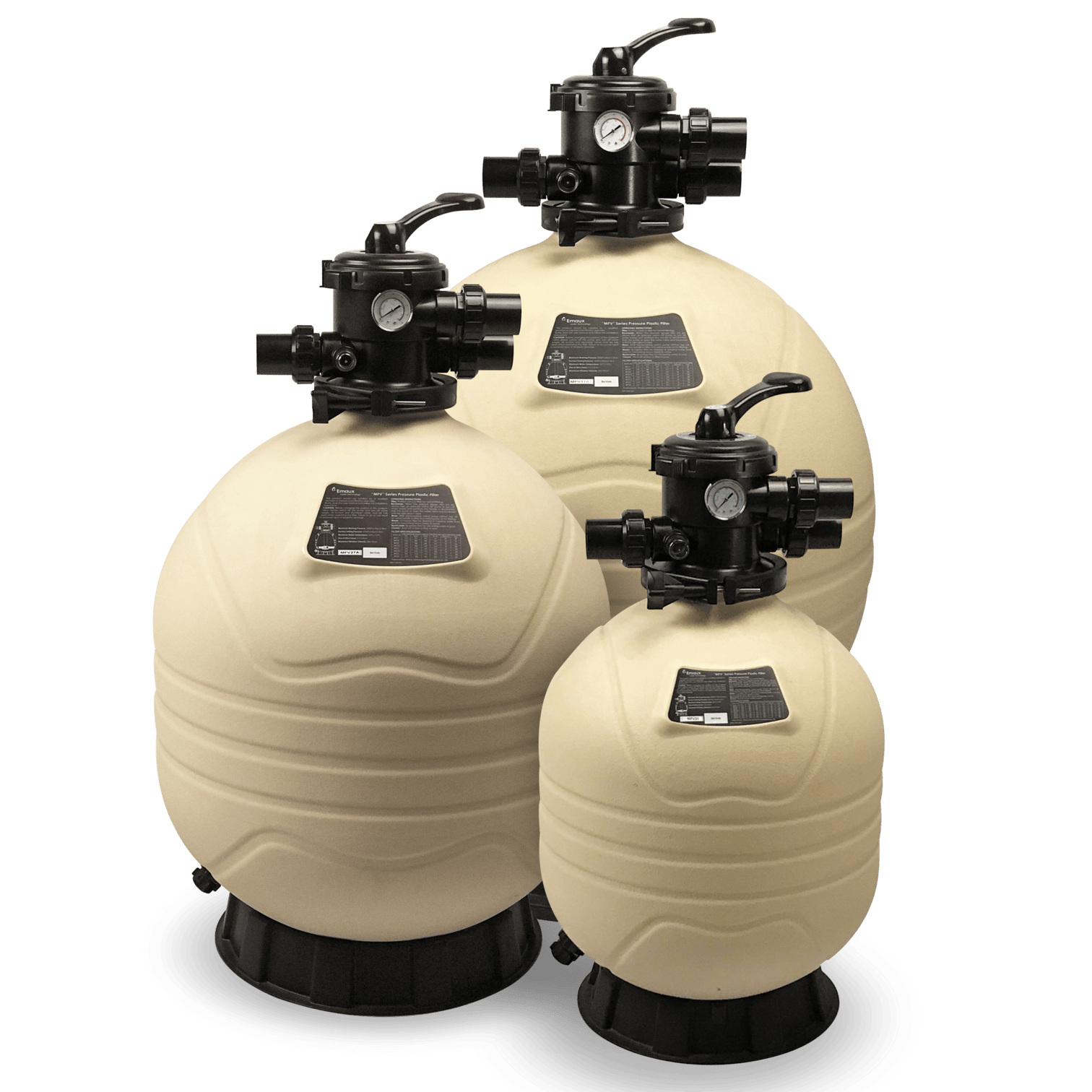

Max series filters are seamless, one-piece blow-molded filter tank in high density polyethylene for heavy duty use and reliability.
Max Top Mount Filter is equipped with :
1. 6-way clamp style multiport valve (1.5”MPV07, 2”MPV08)
2. universal standard of union connection
3. pressure gauge
4. PVC & ABS lateral system
| Code | Model | Filter Area (m²) | Valve Connections | Max Flow Rate | Sand (kg) |
|---|---|---|---|---|---|
| 9010101 | MFV17 | 0.14 | 1.5" / 50mm | 117 lpm / 7.0 m³/h | 40 |
| 9010102 | MFV20 | 0.20 | 1.5" / 50mm | 167 lpm / 10.0 m³/h | 70 |
| 9010109 | MFV24B | 0.28 | 2.0" / 63mm | 233 lpm / 14.0 m³/h | 125 |
| 9010107 | MFV31 | 0.47 | 2.0" / 63mm | 392 lpm / 23.5 m³/h | 250 |
