Product Features:
- Asynchronous, Two poles motor
- Motor Insulation Class B
- IPX5 Waterproof
- Built-in thermal protection
- Overload protection
- Available in 60Hz
- Special design union compatible for both imperial and metric standard
- Imperial and Metric measurement standard
- 316 Stainless steel shaft
- 316 Stainless steel mechanical seal
- Self-Priming up to 2.5m above water level
- Testing pressure 50 psi (3.5 Bar)

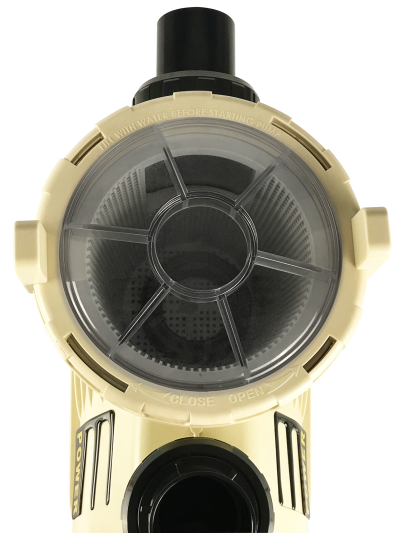

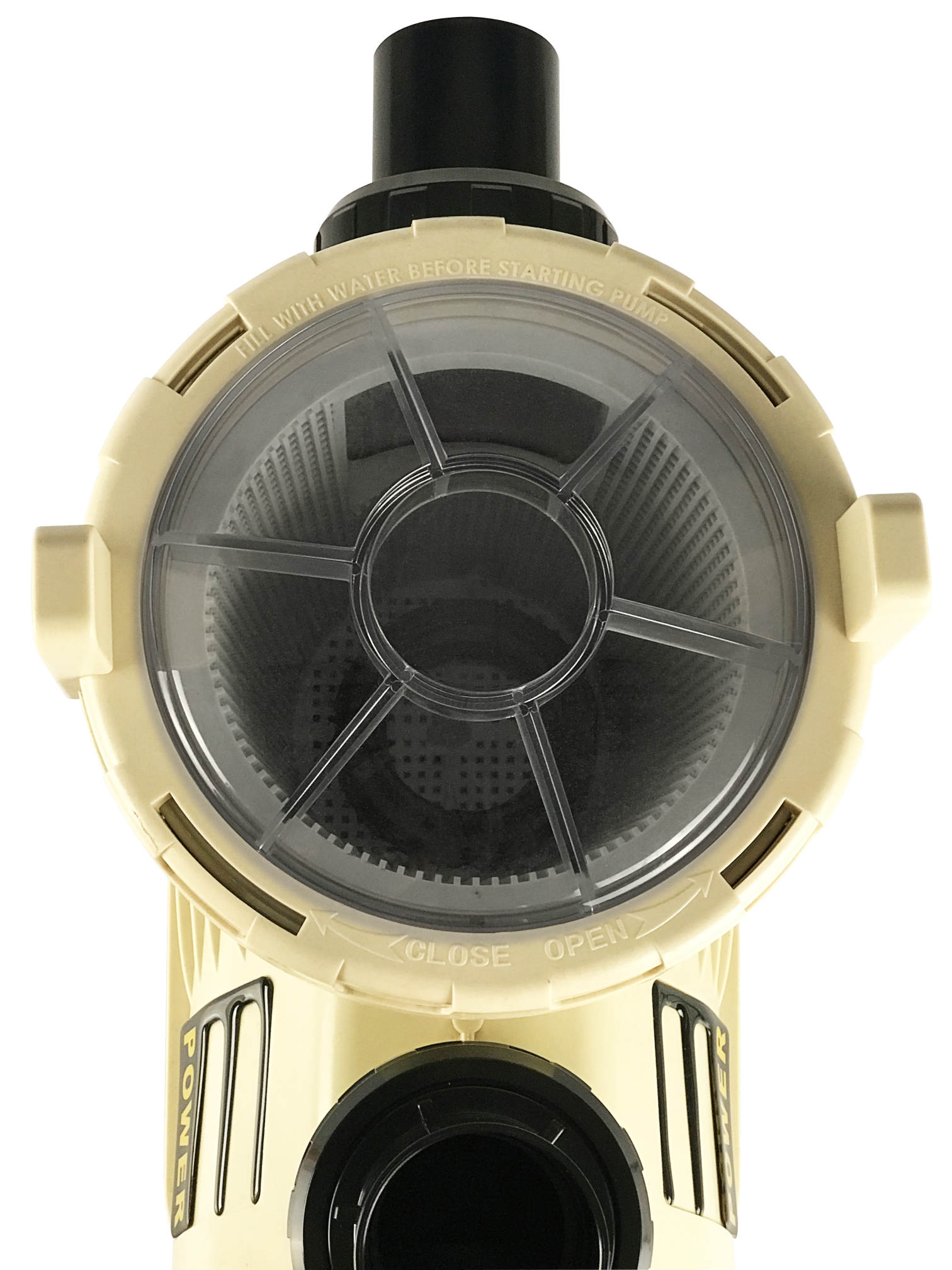

- Basket Volume 5 litres
| Model | Input Power (kW) | Current (AMP) | Noise Level (dB) | Flow @ 6m (m³/h) | Flow @ 8m (m³/h) | Flow @ 10m (m³/h) | Flow @ 12m (m³/h) | Flow @ 14m (m³/h) | Flow @ 16m (m³/h) | SKU 230V/60Hz | Connection Size | HP (hp) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EPH200 | 1.8 | 8.2 | 68 | 32 | 30 | 27 | 24 | 21 | 17 | 9021502 | 2″ / 63mm, 2.5″ / 75mm | 2.0 | 23.0 |
| EPH300 | 2.2 | 10.0 | 69 | 37 | 35 | 32 | 29 | 26 | 22 | 9021505 | 2″ / 63mm, 2.5″ / 75mm | 3.0 | 24.0 |
| EPH400 | 2.8 | 12.5 | 71 | 45 | 42 | 39 | 36 | 32 | 28 | 9021508 | 2″ / 63mm, 2.5″ / 75mm | 4.0 | 25.0 |
