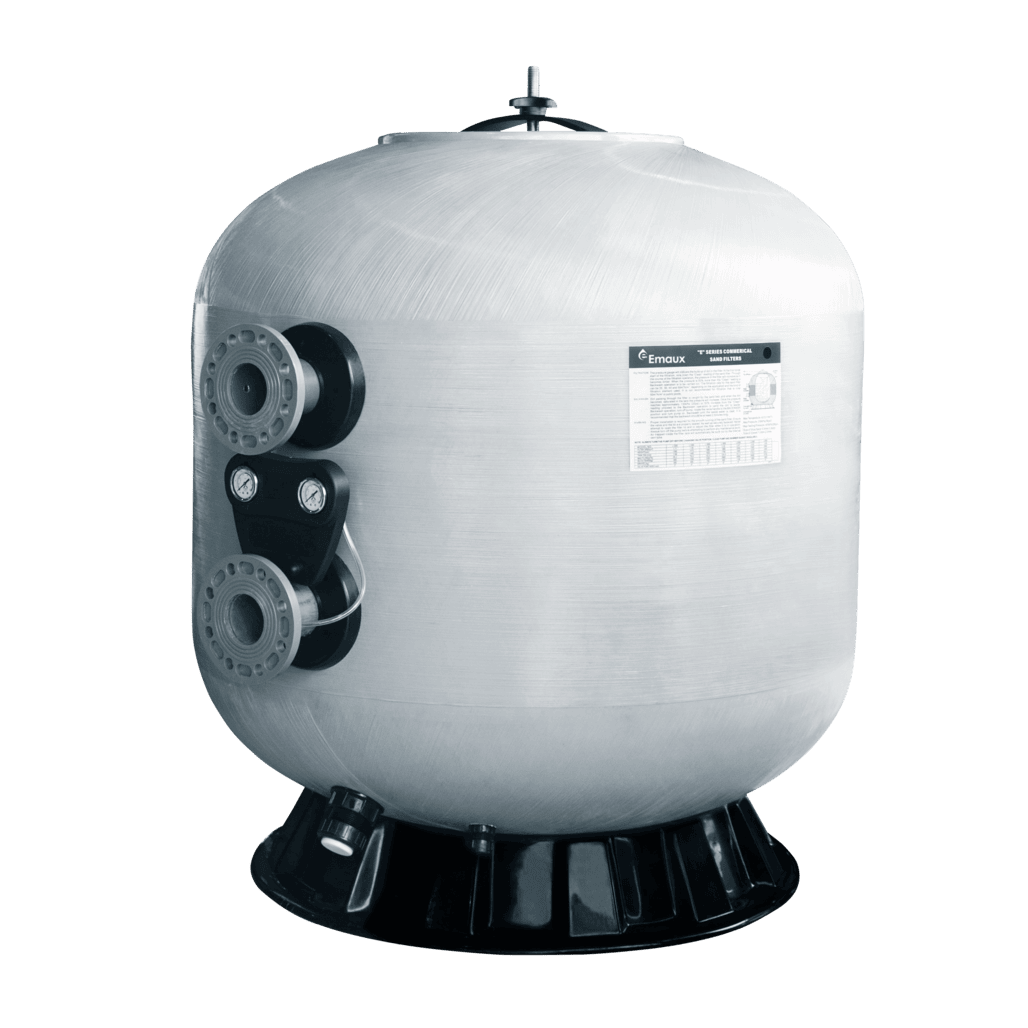

The filter tank is manufactured of durable, non-corrosive fiberglass and resin, with automatic bobbin winding technology, UV resistant composites, which allow the filter to operate under extreme weather conditions.
Product Features:
- Multi-construction layers: non-corrosive and chemical protective
- UV resistance, suitable for operation underprolong sunlight
- High filtration standard with depth sand bed
- Bobbin wound fiberglass reinforcement with polyester resin
- Available with laterals or nozzles plate system for air scouring capabilities
- Optional accessories includes sight glass, manhole, union drain, and air purge.
| Code 2.5 bar | Code 4 bar | Model | Volume (m³) | Filteroppervlak (m²) | Flensaansluitingen GB (mm) | ANSI | Max. flow (lpm) | Max. flow (m³/h) | Zandgewicht (kg) 0.5–0.8 mm | Zandgewicht (kg) 1–2 mm |
|---|---|---|---|---|---|---|---|---|---|---|
| 9014811 | 9014812 | E1400 | 2.10 | 1.54 | 100 | 4" | 1283 | 77 | 1337 | 383 |
| 9013007 | 9013008 | K1400 | 2.57 | 1.54 | 100 | 4" | 1283 | 77 | 1661 | 360 |
