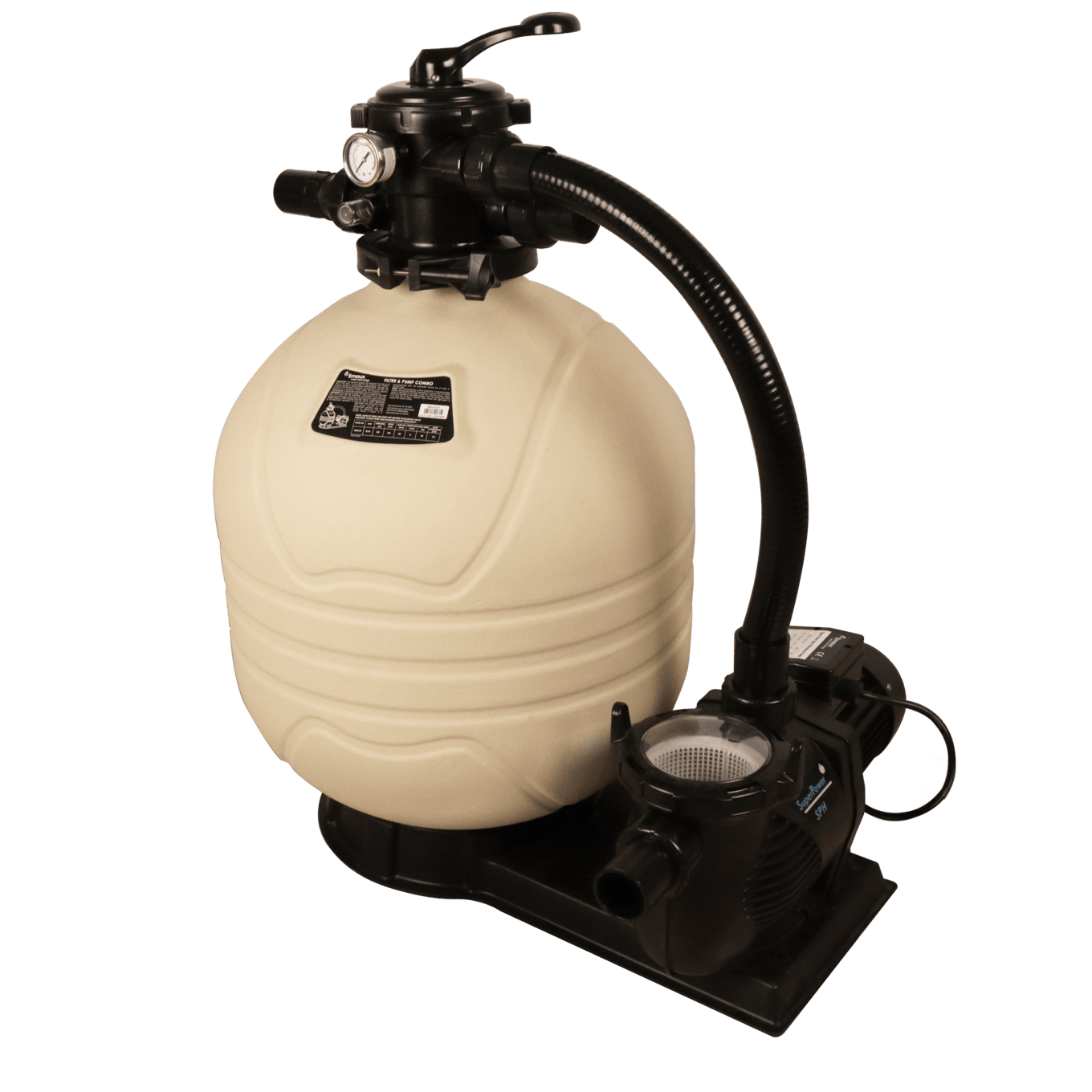

Product Features
- PVC & ABS lateral system
- Unique one-piece clamp with screw-type lock design to simplify installation and allow tool-free servicing
- Oil filled pressure gauge for easy inspection of the operation pressure
- Combine with SPH Series pump which is self-priming up to 3.3m above water level, with IPX5 waterproof standard certified and built-in thermal protection
| Model | Filter Area (m²) | Valve Connections | Max Flow Rate (lpm) | Max Flow Rate (m³/h) | Sand (kg) |
|---|---|---|---|---|---|
| MFV17 | 0.14 | 1.5” / 50mm | 117 | 7.0 | 40 |
| MFV20 | 0.20 | 1.5” / 50mm | 167 | 10.0 | 70 |
| MFV24 | 0.28 | 1.5” / 50mm | 233 | 14.0 | 125 |
